Dolphin Tech Twin Tank Band Set for 8 Inch Cylinders

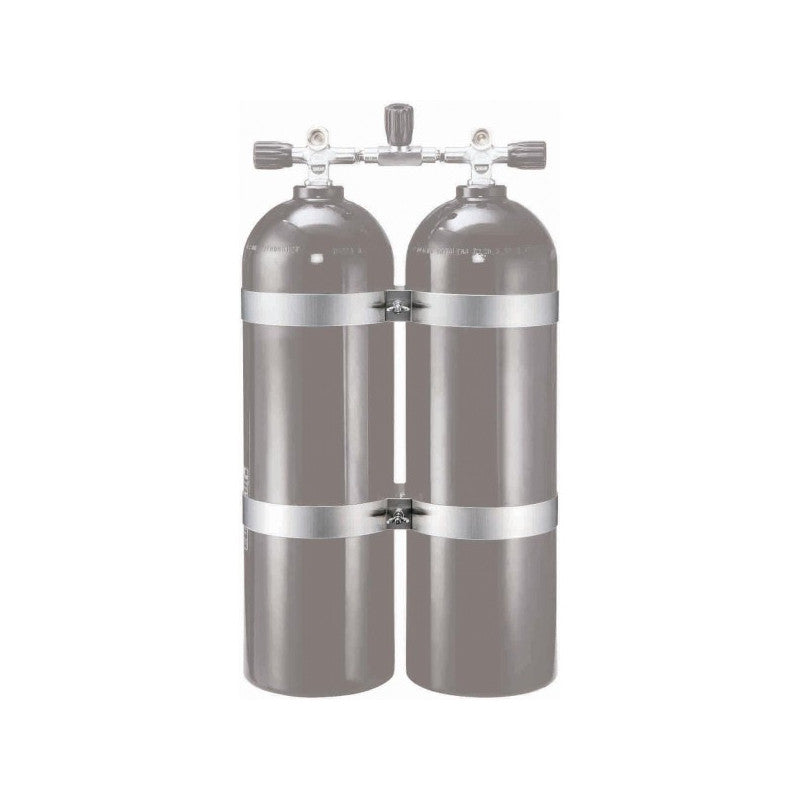

- Tank band set for dual 8 inch (203mm) cylinder setup
- Bands constructed of corrosion resistant 304 stainless steel
- All hardware included
- Band height: 1.61 inches (4.1cm), band thickness: .12 inches (1.5mm)
- Weight (incl. mounting hardware): 2.8lb (1.3kg)
The IST BP-3H-8 Twin Tank Band Set for 8 Inch Cylinders offers sturdy reliability you can count on.
IST’s Dolphin Tech twin tank bands are made from high-grade 304 stainless steel for strength and corrosion resistance. These bands are tougher and stiffer than most commercially available units on the market today due to the use of thicker gauge sheet metal. Rigidity is further enhanced by the addition of a 2mm thick structural plate in the welded sections.
The recommended manifold clearance (valves’ center to center distance) is 215mm +/- 3mm.

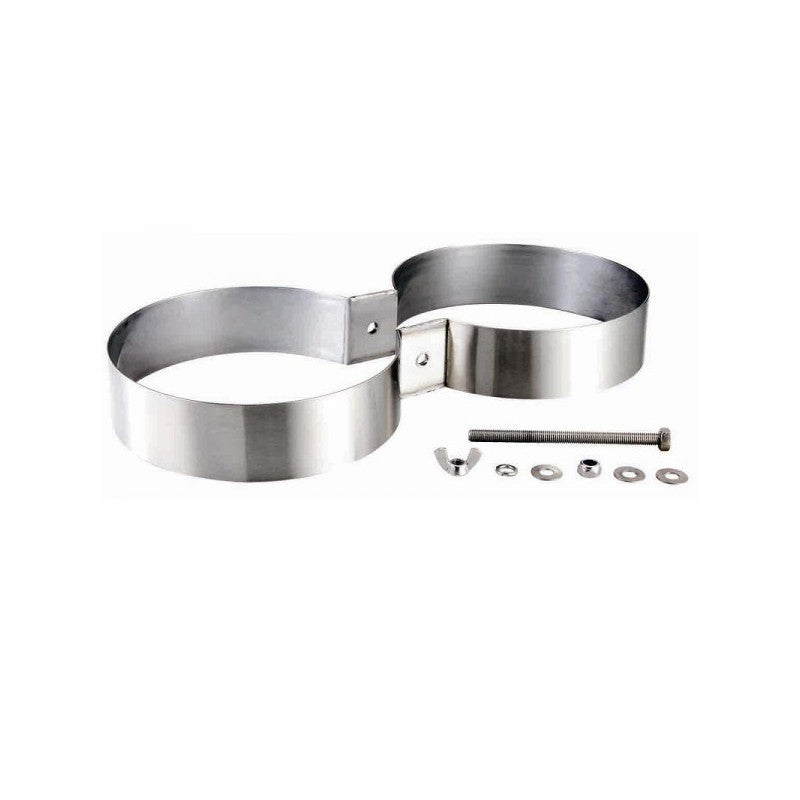

Each twin band set consists of 2 bands and stainless steel connecting hardware: 2 bolts (with welded-on end nut), 2 aircraft nuts, 2 winged nuts, 2 split washers and 6 washers.
Band height: 1.61 inches (4.1cm)
Band thickness: .12 inches (1.5mm)
Weight (incl. mounting hardware): 2.8lb (1.3kg)
